Magic Skate Goods Hex Roller Skate Plate

The Magic HEX plate is the heavy duty skate plate you've been waiting for, made right here in Australia from the people who brought you Chuffed.

Designed and crafted locally in Australia, it not only encompasses the features required to hone your skating to the highest level, it also puts quality, sustainability and ethics at the forefront.

Available in several options:

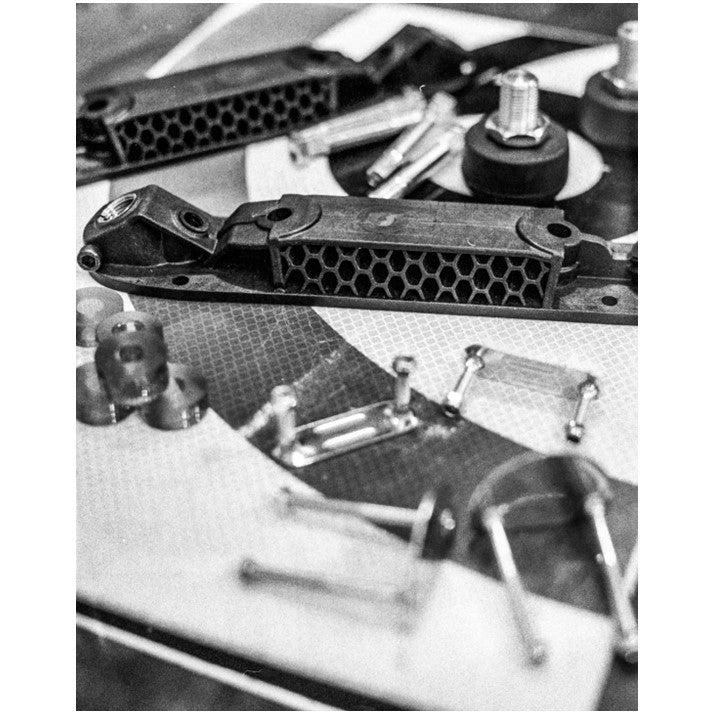

• The 'Raw Plate' option comes with pivot cups, kingpins, cushions, cushion retainers, mounting hardware, and nuts. Don't pay for anything you don't want/need and use your trucks and toe stops of preference. This option DOES NOT come with trucks

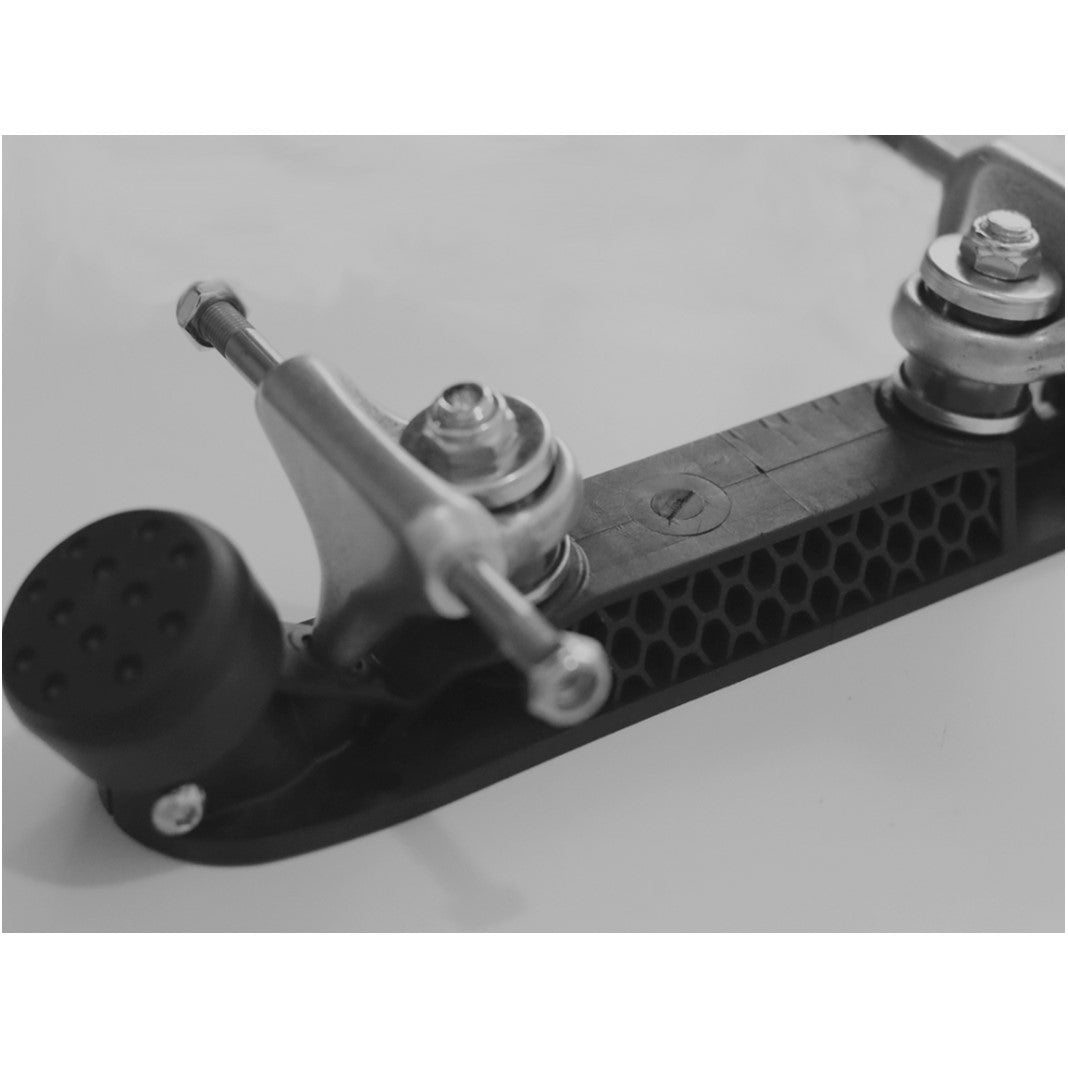

• The 'Narrow Truck' option comes with all of the above, plus standard narrow roller skate trucks
• The '2.5" Truck' option is coming soon, but don't stress, because when these trucks are ready, you can purchase them separately and add them on, and they won't cost any extra than the bundled option

Features:

• High impact resistant hexagon brace pattern modelled off nature's strongest shape (patent pending).
• A specially formulated lightweight but heavy duty Nylon construction, made with skating in mind by design experts specialised in action sports.
• Allen key adjustable toe stop with innovative two part lock system (patent pending).
• Longer wheelbase than most skate plates for maximum stability.

Size: 215.5mm, 228mm, 240.5mm, 253mm, 265.5mm
Fit: Plate sizing is the LENGTH of the plate in mm. So, all you need to do is measure the base of your skate first and choose the best option to fit.

Truck Compatibility: The HEX plate fits the Magic Lowrider trucks, and most 10 degree wide trucks including Chuffedcore, and Brunny Labrys trucks. Huck Trucks need to be cut down at the pivot insert point to fit as they are much taller than our recommended Low Rider trucks.

Kingpin Distance:
This will help you determine your block size. It is the measurement between the centre of one kingpin to the centre of the other kingpin.

215.5 - 75mm
228 - 90mm
240.5 - 105mm
253 - 120mm
265.5 - 135mm

Block fit can be impacted by wheel size and the type of trucks you use. Larger wheels may impact block wings and require mods or a smaller block or wheel size.

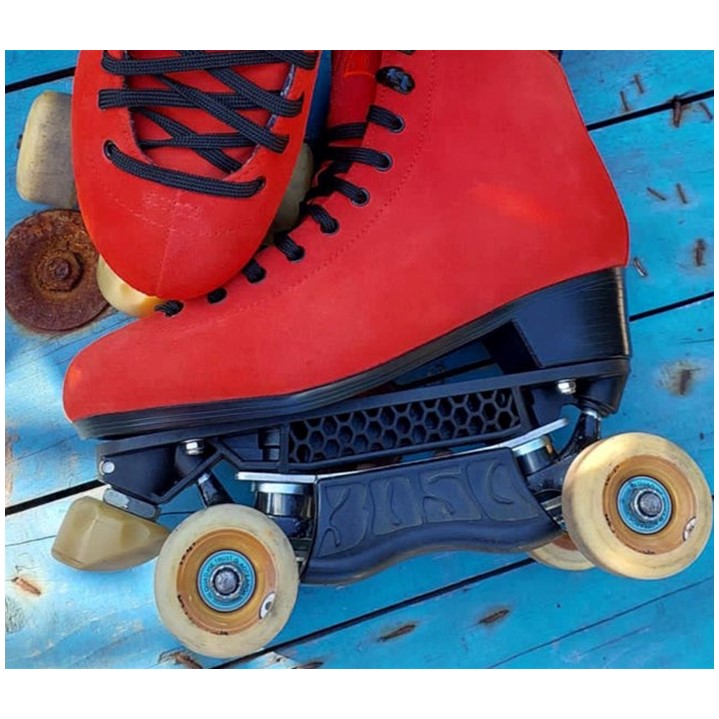

Photo for illustration purposes. Shows the Hex plate mounted to a Chuffed boot, complete with blocks, wheels, toe stops and trucks.

Brand: Magic Skate Goods
